EFS Wheel Sorter
EFS series of wheel sorter is mainly used for big and weight parcels, there is no need for maintaining frequently. Turning power from the servo motor, which has fast response, stable and reliable. Compact structure to make sure the smooth and stable sorting. Independent controlled and can realize the sorting action only need to accept the sorting signal, greatly reducing the on-site commissioning time. The EFS uses a servo motor and uses a sensor to detect the movement of the balance wheel and interlocks with the sensor signal to ensure the stability and reliability of the sorting. The sorting steering mechanism is connected by joint bearings. Sorting angle can be fine-tuned to make on-site commissioning more flexible. The foot is adjustable which can according to the actual site situation.
Size&Dimensions:
| Model No. | Dimensions(LxWxH) |
| WM-600EFS | 621mmX680mmX800mm |
| WM-800EFS | 814mmX880mmX800mm |
| WM-1000EFS | 1030mmX1080mmX800mm |
| Customizable according to customers’ requirements | |

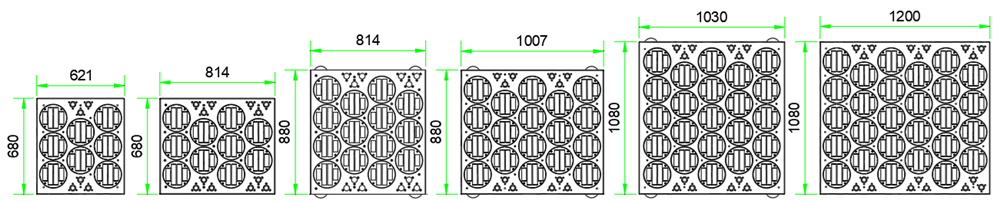

Some typical models for reference:
Specification:
| Conveying Drive Unit: | Powered Electrical Roller, 60w/pc |
| Diverting Drive Unit: | Servo Motor Driven, 220V, 50HZ, 750W, Single Phase |
| Conveyor Speed: | 30/60/72/90/120/150 m/min, adjustable |
| Diverting Angle: | 30/45/60/90 degrees at single or double sided |
| Min Parcel: | 90*90*10mm-0.1kgs |
| Max Parcel: | 1200*1000*1000mm-60kgs/sqm |
| Capacity: | 4500-7200 packages per hour(base on average parcels 400mm) |
| Operating Temperature: | -10~40 Degree |
| Interface Options: | RS485/232, Ethernet, IO |
| Noise: | Less than 75dB |
| Color Code: | Customized |
| Frame Material: | Powder Coated Steel Frame |
| Stand Support: | Powder Coated Hollow Section with Bracket |
Components List:
| No. | Item | Brand | Country |
| 1 | PLC | Siemens/Delta | Germany/Taiwan, China |
| 2 | Servo Motor | Delta/Hechuan | Taiwan, China/China |
| 3 | Servo Driver | Delta/Hechuan | Taiwan, China/China |
| 4 | Wheel Roller | Wangman | China |
| 5 | Relay | Schneider | France |
| 6 | Air Switch | Schneider | France |
| 7 | Emergency Stop | Schneider | France |
| 8 | Button | Schneider | France |
| 9 | Alarm Indicator | Schneider | France |
| 10 | Power Indicator | Schneider | France |
| 11 | Electric Control Box | Rittal | Shanghai, China |
Advantages:
1) Customizable: Angular rotation is powered by servo motors with a resolution of less than a degree for customized angles between 0 and 90 degrees.
2) High Sorting Rate: Every wheel module has a separated powered electrical roller. Designed for high speed and bidirectional for sorting operation on both sides at the same time. Polyurethane coated wheels and bands provide enough drive to minimize loss in speeds during divert. Maximum Sorting Rate can be 7200 pieces/hour.
3) Low Noise: Use new material and noise elimination technology which can be friendly for Environment, noise can be less than 75dB.
4) Energy Conservation and Environmental Protection: Light weight material and low energy consumption structure as well as low power and source power (conveyor) drive to achieve successful operation.
5) Flexible and Stable Sorting Operation: Online multi-row swivel wheel technology prevents conveyed goods from vibration and damage. Stably and flexibly sort goods from light duty to maximum 70kg heavy duty range.
6) Easy Layout and Maintenance: Use unit modular design and embedding combination structure, easy for sorting positions be placed at any position along both sides of conveyor line. Product is more reasonable, simple, conveniently used and maintained. One worker can replace a new wheel module within 10 minutes, it’s an Cost-effective solution!
