Narrow Belt Sorter

Narrow Belt Sorter

Narrow Belt Sorter

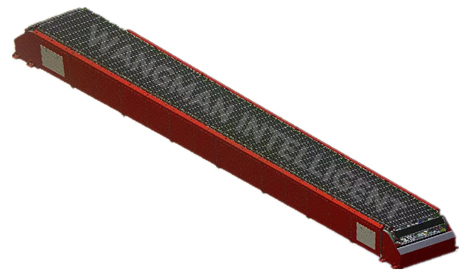

Narrow belt sorter is a non-standard customized sorting line. It is a belt conveyor composed of multiple narrow belts distributed at equal intervals. It is driven by the left and right sides of the belt to deliver the goods to the designated grid to achieve rapid sorting of goods. of a device.
It is mainly used for cargo sorting in warehousing, logistics, express delivery, e-commerce and other industries. It can handle large and small items such as cartons, flexible packaging, bag packaging, envelopes, as well as fragile items such as drinks.

Advantages:

1) Belt conveyor surface, flexible sorting, can be compatible with packages with uneven bottoms, soft packages, smaller volumes, as well as fragile packages such as drinks, reducing error rates and breakage rates.

2) Compatible with sorting of large and small pieces, high processing efficiency, automatic part supply, low labor intensity.

3) The sorting action of the narrow-band car unit is driven mechanically and does not require a large number of electrical components, greatly reducing costs.

4) Small pitch, smaller turning radius, lower equipment height.

5) Simple operation and maintenance, low energy consumption, and short capital return cycle

Specification:

NO.	Item	Parameter
1	Sorting efficiency	6000~8000pcs/h
2	Car pitch	152.4mm
3	Line width	600mm~1300mm (customizable)
4	Line length	8000-65000mm (customizable)
5	Line speed	1.0-2.0m/s (adjustable)
6	Sorting accuracy	≥99.99%
7	Grid width	2000mm (1.8m/s) ~ 2200mm (2.0m/s)
8	Package size	100×100×1mm~1500×800×700mm
9	Package weight	50g~50kg
10	Noise	≤75dB(A)

Carrier
Size	203mm*1000mm
Belt	High quality anti-skid conveyor belt
Belt drive form	Electric roller
Vehicle power supply	Slide line
Main line drive form	Linear Motor

Parcel supply		Chude		Other
supply method	terminal import	width	Adjustable	scanning	top scan/ three side scan
supply form	supply method/ sutomatic supply	spacing	Adjustable	recognition rate	≥99%
weight function	optional	exception settings	Need	sorting accuracy	≥99.99%

Components:

Item	Brand	Country	No.	Item	Brand	Country
PLC	Siemens	Germany	7	Air Switch	Schneider /Chint	France /China
Servo Motor	Modi	China	8	Slide Line	Panasonic	Japan
Servo Driver	Modi	China	9	Photoelectric	Sick	Germany
Brushless Motor	Modi	China	10	Touchscreen	KunLun TongTai	China
Electric Roller	Modi	China	11	Button	Schneider	France
Relay	Schneider/Chint	France /China	Remarks: Customizable according to customers’ requirements.
