Flexible Roller Conveyors can take your conveyor solution to the next level of productivity and efficiency. They provide advantages in versatility, footprint, ergonomics and more.

WANGMAN utilizes powered rollers to enable fast, efficient loading or unloading of packages in shipping, transportation, packaging, and other applications with less operator assistance. These conveyors can flex around corners, service multiple dock doors, or navigate close quarters where other infrastructure or equipment is present. When not in use, valuable space can be saved by retracting the conveyor to its smallest footprint.

By eliminating workarounds and extra steps in moving packages, WANGMAN also improves ergonomics, reduces injury risk, and increases overall package handling efficiency.

WANGMAN Provide below 4 different designs to meet customers’ different requirements:

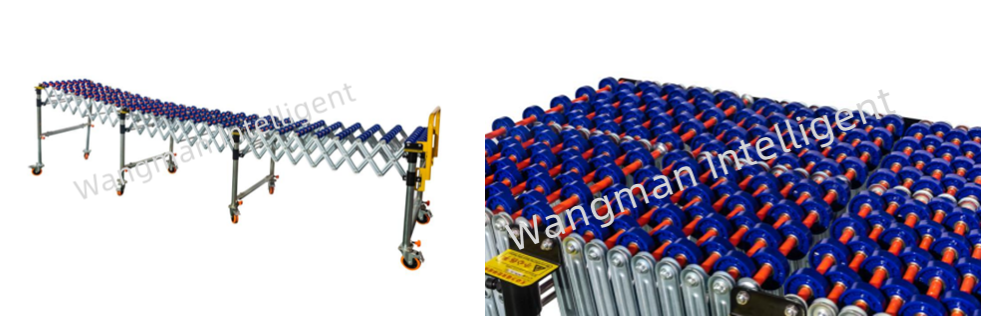

Design A: Flexible Gravity Skate-Wheel Conveyor
Features:Can be retracted arbitrarily, 360-degree turning, height adjustment, easy to move, small footprint.
Application:Suitable for loading and unloading box-type and smooth-bottomed goods.
Raw Material:
1.Skate Wheel：ABS,imported from Europe.
2.Expansion Bracket: bending structure, steel plate stamping parts, increase bearing capacity, connect by bolts.
3.Frame：Carbon Steel(Galvanized plus electrophoresis to confirm long service life against rusty).
4.Caster Wheels：Universal casters with brake device for stable conveying.
Technical Parameters:

NO.	Item	Parameter
1	Length(mm)	Customizable
2	Height(mm)	450-650、570-850、725-1100、950-1600mm
3	Width(mm)	500、600、800(1000、1200custmizable)
4	Pitch(mm)	110mm、135mm、170mm
5	Stretch Ratio	0.3:1、0.3:1.25、0.3:1.55
6	Unit Loading Capacity	≤30kg/Unit

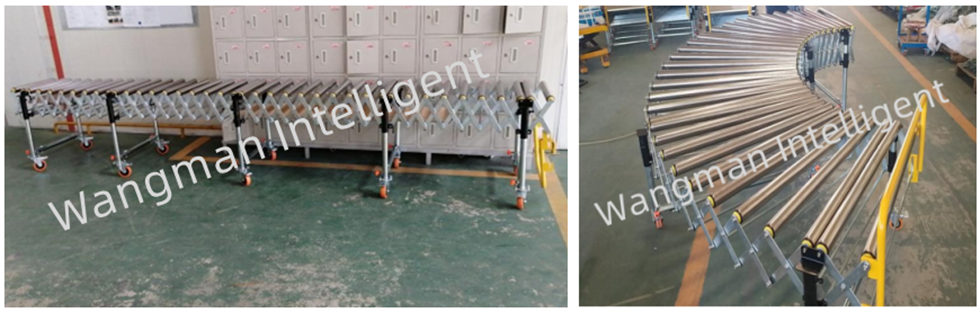

Design B: Flexible Gravity Roller Conveyor
Features: Can be stretched arbitrarily, 360-degree turning, height adjustment, easy to move, small footprint, large bearing capacity.
Application: Suitable for conveying all kinds of box-type and smooth bottom goods.
Raw Material:
1. Roller: Stainless steel, galvanized.
2. Expansion Bracket: Steel plate stamping parts, bolt connection, increase bearing capacity, surface electrophoresis treatment.
3. Frame: Carbon steel (galvanized + electrophoresis), stainless steel.
4. Casters: Universal casters with brake device, stable conveying.
Technical Parameters:

NO.	Item	Parameter
1	Width(mm)	500、600、800(1000、1200custmizable)
2	Height(mm)	450-650、570-850、725-1100、950-1600mm
3	Roller Diameter	50mm*t1.2, φ12 axis
4	Pitch(mm)	100mm、125mm、150mm
5	Stretch Ratio	0.5:1、0.5:1.25、0.5:1.5
6	Unit Loading Capacity	≤50kg/Unit

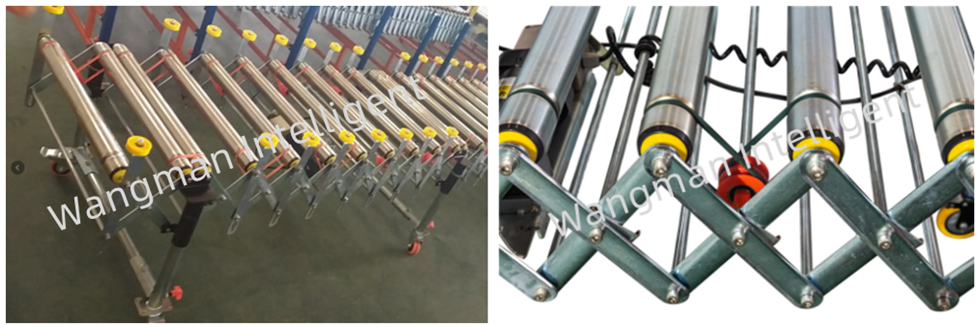

Design C: O-Belt Flexible Powered Roller Conveyor
Features: With power motor, 360-degree turn, can be expanded and retracted arbitrarily, height adjustable, easy to move, small footprint, large bearing capacity.
Application: Suitable for conveying all kinds of box-type and smooth bottom goods.
Raw Material:
1. Roller: Stainless steel, Galvanized.
2. Expansion Bracket: Steel plate stamping parts, bolt connection, increase bearing capacity, surface electrophoresis treatment.
3. Frame: carbon steel (galvanized + electrophoresis), stainless steel.
4. Casters: Universal casters with brake device, stable conveying.
Technical Parameters:

NO.	Item	Parameter
1	Width(mm)	500、600、800(1000、1200custmizable)
2	Height(mm)	450-650、570-850、750-1150、950-1600mm
3	Roller Diameter	50mm*t1.2, φ12 axis
4	Pitch(mm)	100mm、125mm、150mm
5	Stretch Ratio	0.53:1、0.53:1.25、0.53:1.5
6	Unit Loading Capacity	≤30kg/Unit
7	Driven Method	O-Belt

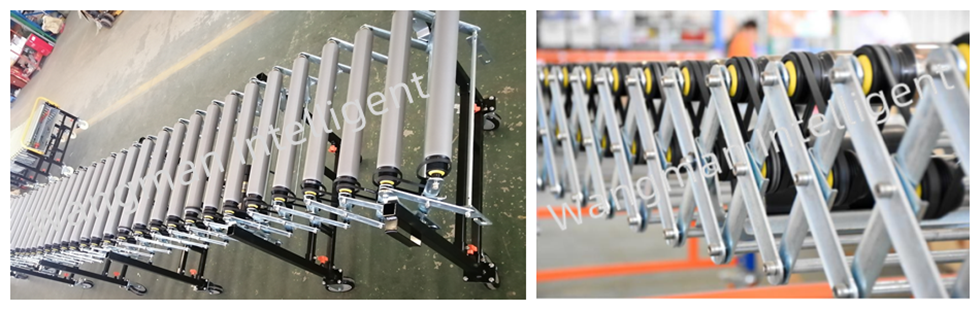

Design D: V-Ribbed Belt Flexible Powered Roller Conveyor
Features: With power motor, 360-degree turn, can be expanded and retracted arbitrarily, height adjustable, easy to move, small footprint, large bearing capacity.
Application: suitable for conveying all kinds of box-type and smooth bottom goods.
Raw Material:
1. Roller: Stainless steel, galvanized
2. Expansion Bracket: Steel plate stamping parts, bolt connection, increase bearing capacity, surface electrophoresis treatment
3. Frame: Carbon steel (galvanized + electrophoresis), stainless steel.
4. Casters: Universal casters with brake device, stable conveying.
Technical Parameters:

NO.	Item	Parameter
1	Width(mm)	500、600、800(1000、1200custmizable)
2	Height(mm)	450-650、600-850、750-1150、950-1550mm
3	Roller Diameter	50mm*t1.2, φ12 axis
4	Pitch(mm)	100mm、125mm、150mm
5	Stretch Ratio	0.53:1、0.53:1.25、0.74:2
6	Unit Loading Capacity	≤60kg/Unit
7	Driven Method	V-Ribbed belts
