Dynamic DWS System

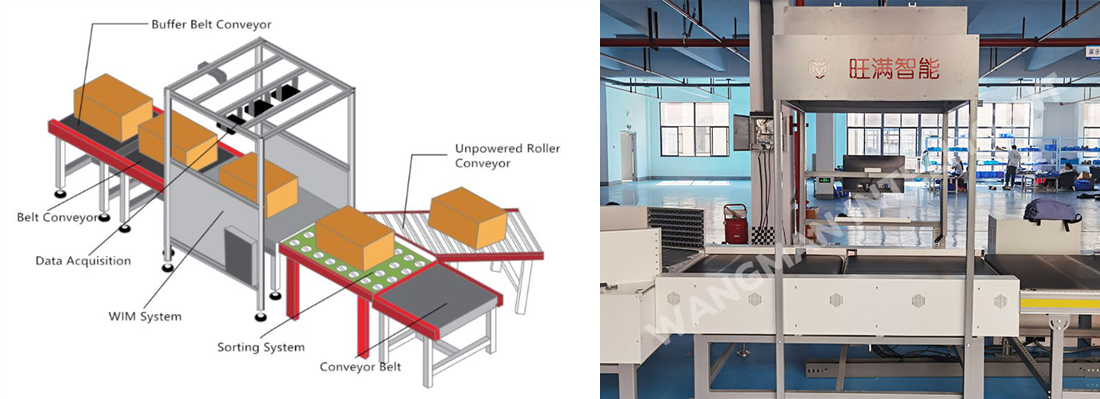

Dynamic DWS System located between the conveyer machine and sorting line, to measure the weight, dimension, and scanning barcode automatically, then the software will upload the data information to e-commerce, courier, logistics, warehouse etc. management system in real time.
Size&Dimensions
| Model No. | Size&Dimensions |
| WM-600DWS | L(1m+1m+1m)*W600mm*H800mm |
| WM-800DWS | L(1m+1.2m+1m)*W800mm*H800mm |
| WM-1000DWS | L(1m+1.4m+1m)*W1000mm*H800mm |
Specifications
|
Capability: |
Up to 3600 pieces per hour, in theory |
|
Conveying Speed: |
72~90 m/min(Adjustable) |
|
Power: |
1-phase 115/230 VAC, 50/60HZ |
|
Barcode Scanner: |
Dynamic Scanning |
|
Barcode Type: |
1-Dimension or 2-Dimension |
|
Barcode Direction: |
Parallel or Vertical |
|
Barcode Position: |
Top or side surface(1 to 6 sides scanning customizable) |
|
Interface Options: |
RS 485/232, Ethernet |
|
Loading Weight: |
0.1kg~50kg |
|
Accuracy: |
Weight: ±50g; Dimension: ±10mm |
|
Parcel Dimensions: |
100mmx100mmx50mm~1200mmx800mmx800mm |
Components
|
Components of DWS System: |
|||
| No. | Item | Brand | Country |
| 1 | PLC | Siemens | Germany |
| 2 | Frequency Converter | Schneider | France |
| 3 | Load Cell | Keli | China |
| 4 | Scanner | Dahua | China |
| 5 | Volume Measuring Camera | Dahua | China |
| 6 | Relay | Schneider | France |
| 7 | Air Switch | Schneider | France |
| 8 | Burtton Switch | Schneider | France |
| 9 | Power | Meanwell | Taiwan, China |
| 10 | Cable | Qifan | China |
| 11 | Motor | Wanshsin | Taiwan, China |
| 12 | Photoelectric Senser | Sick | Germany |
| 13 | Software | Wangman | China |
| 14 | Belt | Yongli | China |
Advantages:
1. DWS can work with high speed Conveyor System, the weight, volume, barcode information can be read accurately when the conveyor belt speed at 1.2-1.5m/s.
2. Measuring weight, volume and reading barcode when the parcel is moving on machine, the data will be upload the serve in real time, high efficiency to 3600 parcels/hour.
3. The data collected by DWS can be directly used in the management system, Multiple Data transfer modes, support customize.
4. The alarm will ring and conveyor will stop, if abnormal conditions such as miss reading / measuring.
5. The Dynamic DWS system uses a module design concept. Can meet the various needs of customers, provide a variety of application methods. To facilitate customer Integration into the existing assembly line.
