Pop Up Diverter
Product parameter:
-
-

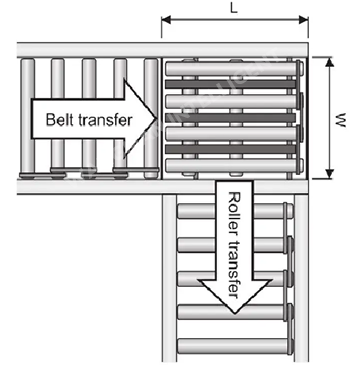

Length 645mm-845mm width 390mm-790mm Signal type selection N … NPN signal type
(NPN sensor / driver card)P … PNP signal type
(PNP sensor / driver card)Speed
17 … 17 m/min
(Belt / Roller transfer : 17 m/min)60 … 60 m/min
(Belt / Roller transfer : 60 m/min)90 … 90 m/min
(Belt / Roller transfer : 90 m/min)
Specification:
|
Roller Diameter |
φ50mm |
|
|
Size |
Width (W) Transfer direction |
390-790mm |
|
Length (L) Spine direction |
645-845mm |
|
|
Height |
185mm |
|
|
Transfer / Spine Speed |
10-57m/min |
|
|
Stroke |
10mm |
|
|
Power voltage |
DC24V |
|
|
Ambient temperature |
0 ～ 40℃（No freezing） |
|
|
Humidity Below |
90%RH or less（No condensation） |
|
|
Atmosphere |
No corrosive gas |
|
|
Installation |
Indoor |
|
Advantages:

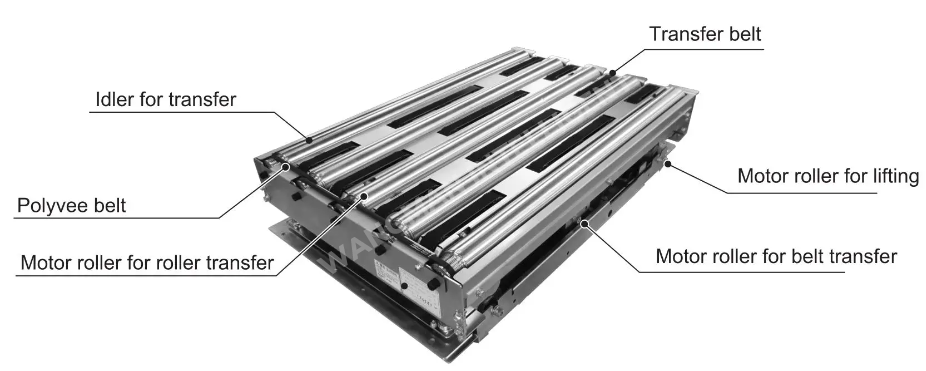

1) Pop-Up transfer modules use 24V DC Brushless Motorized Roller technology in a very compact cassette structure. It easy to integrate into both new and reconditioned conveyors.
2) Achieve right-angle turns under limited space conditions to save space.
3) Simple structure, high reliability, easy to use and maintain.
4) It can be used on conveyor lines for order picking, distribution or on assembly lines to adapt to your logistics changes.
5) The structure is diverse and can be adjusted according to the conditions of the customer's production site.
