EWS design is simple and stable, there is no need for maintaining frequently. Turning power from the servo motor, which has fast response, stable and reliable. Compact structure to make sure the smooth and stable sorting. Independent controlled and can realize the sorting action only need to accept the sorting signal, greatly reducing the on-site commissioning time. The EWS uses a servo motor and uses a sensor to detect the movement of the balance wheel and interlocks with the sensor signal to ensure the stability and reliability of the sorting. The sorting steering mechanism is connected by joint bearings. Sorting angle can be fine-tuned to make on-site commissioning more flexible. The foot is adjustable which can according to the actual site situation.

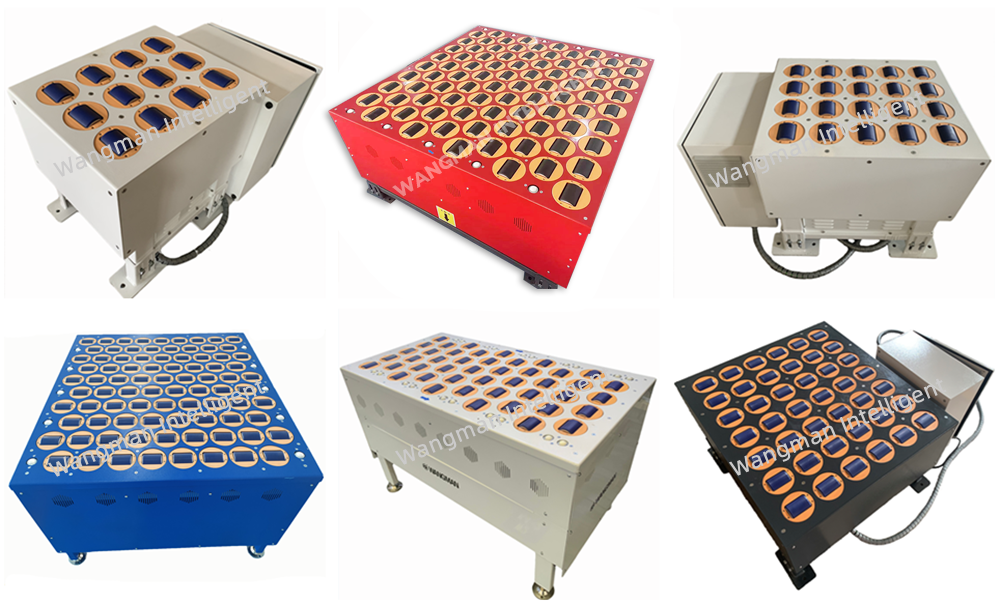

Size&Dimensions:

Model No.	Dimension(LxWxH)
WM-400EWS	536mmX450mmX800mm
WM-500EWS	656mmX570mmX800mm
WM-600EWS	776mmX690mmX800mm
WM-700EWS	896mmX810mmX800mm
WM-800EWS	1016mmX930mmX800mm
WM-900EWS	1136mmX1050mmX800mm
Customizable according to customers’ requirements

Specifications:

Conveying Drive Unit:	Powered Electrical Roller, 60w/pc
Diverting Drive Unit:	Servo Motor Driven, 220V, 50HZ, 750W, Single Phase
Conveyor Speed:	30/60/72/90/120/150 m/min, adjustable
Diverting Angle:	30/45/60/90 degrees at single or double sided
Min Parcel:	80*80*10mm-0.1kgs
Max Parcel:	1200*1000*1000mm-60kgs/sqm
Capacity:	4500-7200 packages per hour(base on average parcels 400mm)
Operating Temperature:	-10~40 Degree
Interface Options:	RS485/232, Ethernet, IO
Noise:	Less than 70dB
Color Code:	Customized
Frame Material:	Powder Coated Steel Frame
Stand Support:	Powder Coated Hollow Section with Bracket

Components:

No.	Item	Brand	Country
1	PLC	Siemens/Delta	Germany/Taiwan, China
2	Servo Motor	Delta/Hechuan	Taiwan, China/China
3	Servo Driver	Delta/Hechuan	Taiwan, China/China
4	Wheel Roller	Wangman	China
5	Relay	Schneider	France
6	Air Switch	Schneider	France
7	Emergency Stop	Schneider	France
8	Button	Schneider	France
9	Alarm Indicator	Schneider	France
10	Power Indicator	Schneider	France
11	Electric Control Box	Rittal	Shanghai, China

Advantages:

1) Customizable: Angular rotation is powered by servo motors with a resolution of less than a degree for customized angles between 0 and 90 degrees. Can provide Unique Design-Double sides 90 degree sorting.
2) High Sorting Rate: Every wheel has a separated powered electrical roller. Designed for high speed and bidirectional for sorting operation on both sides at the same time.Polyurethane coated wheels and bands provide enough drive to minimize loss in speeds during divert. Maximum Sorting Rate can be 7200 pieces/hour.
3) Low Noise: Use new material and noise elimination technology which can be friendly for Environment, noise can be less than 75dB.
4) Energy Conservation and Environmental Protection: Light weight material and low energy consumption structure as well as low power and source power (conveyor) drive to achieve successful operation.
5) Flexible and Stable Sorting Operation: Online multi-row swivel wheel technology prevents conveyed goods from vibration and damage. Stably and flexibly sort goods from light duty to maximum 50kg heavy duty range.
6) Easy Layout and Maintenance: Use unit modular design and embedding combination structure, easy for sorting positions be placed at any position along both sides of conveyor line. Product is more reasonable, simple, conveniently used and maintained.
